This section shows how to adjust the outer and inner circles of the disc.  This function can be used to adjust an existing medium.

* The paper label in genre CD Jewel Case Print cannot be edited.
* To fine tune the print range for a registered medium, use Adjust Circle Size function.  For details, refer to "Functions > Editing Label Sheets > Adjust circle size of a disc".

Step 1

In Paper Selection dialog box, select a CD type you want to use as a base, and click New button.  Add/Edit User Defined dialog box appears.

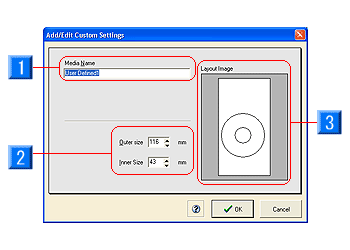

Input into each item, and click the OK button.  Registered information is added to the CD Type.

  1. Media Name: Enter a new name.
  2. Outer (Inner) Size: Enter the sizes of the outer and inner circles in mm.
  3. Layout Image: Displays a preview of the circle sizes.

* Press the Edit button to edit a registered medium.  Press the Delete button to delete a medium.
* You can only register media for CD Label Print.  New CD Jewel Case Print media cannot be registered.
* You can edit and delete only the new media that is registered.  You cannot edit or delete pre-registered media.
