This section shows how to set print settings for the printer.  This is the most important setup you will perform when creating a label.  Before printing, check the settings and change paper and other items if necessary.

Step 1

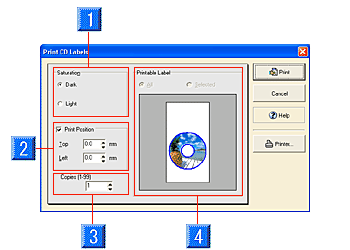

Click the Print button in the Label Edit, or select Print on the File menu.  Print CD Labels dialog box (Print Label Sheet dialog box for CD jewel cases) appears.

  1. Saturation (when selecting CD Label Print): Select either Dark or Light.
  2. Print Position: You can specify the print position by 0.1 mm from top.
    • Top: Positive values moves the printing position down.  Specifying negative values moves the printing position up.
    • Left: Positive values moves the printing position to the right.  Specifying negative values moves the printing position to the left.
  3. Copies: You can specify up to 99 copies at one time.
  4. Printable Label: You can specify the labels to print.
    • All: Prints all labels on the label sheet.
    • Selected: Prints only the selected labels.  Click the labels you want to print.  The labels with the blue outlines will be printed.
  5. Print Options:
    • Label Outline
      Prints the outline of a label in a thin line (black).  This option can be used for test print.
    • Cutout Line
      Prints the cutout line of a label in a thin dashed line (black).  This options can be used when cutting the label with scissors or cutters.
    • Fold Line
      This option prints additional lines such as folding lines in back of the CD jewel case.
* You can also set print quality.  To set print speed and quality, select Environment Settings on the File menu.  For details, refer to "Settings > Environment settings".
  • Draft (Print speed is the highest priority.  The result may not be printed as the design image)
  • Standard (Balances the print quality and speed)
  • High (Gives the best quality with the printer resolution, however printing may take time)
Step 2


To set details of the printer driver, click the Printer...button.
In Printer Settings dialog box, select the paper size and printing direction.
For advanced settings, click Properties in Printer Settings dialog box.  In the properties window of the driver, make necessary selections.

* For details on printer driver settings, refer to operating instructions attached to the printer.
